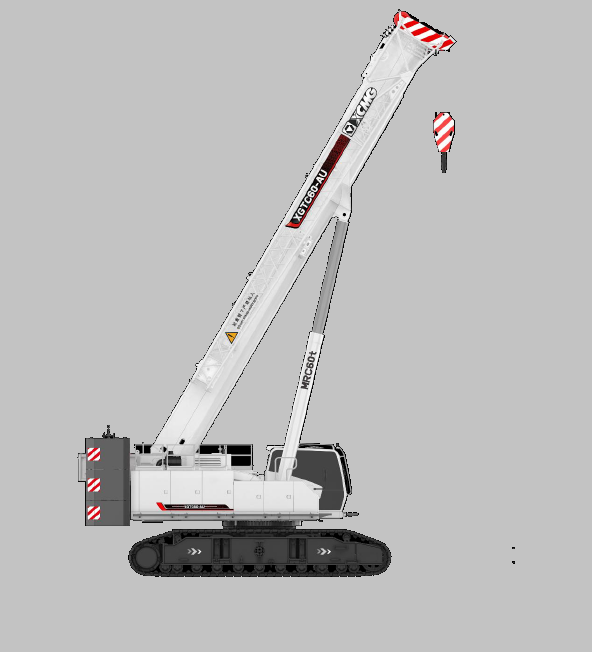

XCMG XGTC60-AU Telescopic Crawler Crane

PRODUCT OVERVIEW

The XGTC60-AU Telescopic Crawler Crane is a highly versatile 60-tonne class lifting solution designed for projects that require strong lifting performance, compact transport dimensions, and excellent mobility on soft or uneven ground.

Manufactured by XCMG, the XGTC60-AU combines the fast setup advantages of a telescopic boom crane with the stability and low ground pressure benefits of a crawler undercarriage. This makes it an ideal solution for civil construction, infrastructure projects, industrial maintenance, and shutdown work across Australia.

Powered by a Cummins B6.7 EU Stage V engine, the XGTC60-AU delivers reliable performance, reduced emissions, and excellent fuel efficiency while maintaining smooth, precise lifting control.

KEY SPECIFICATIONS

• Maximum Rated Lifting Capacity: 60 tonnes
• Maximum Lifting Moment: 2,205 kN·m
• Main Boom Length: 12 – 46.5 metres
• Fixed Jib Length: 9.5 m / 16 m
• Maximum Boom + Jib Length: 62.5 metres
• Engine: Cummins B6.7 – 209 kW @ 2,200 rpm (EU Stage V)
• Maximum Travel Speed: 2.4 km/h
• Gradeability: 45%
• Crawler Shoe Width: 760 mm
• Average Ground Pressure: approx. 0.08 MPa
• Total Operating Weight: approx. 68.4 tonnes

FEATURES & BENEFITS

• Telescopic Boom Design – Fast setup and efficient operation without lattice boom assembly delays.
• Crawler Undercarriage – Excellent stability and low ground pressure for soft or uneven ground conditions.
• Advanced Electro-Hydraulic Control System – Smooth, precise lifting and slewing performance.
• 360° Slewing Capability – Strong slewing bearing with soft start and stop control.
• Operator-Focused Cabin – Air-conditioned tilt-up cab with excellent visibility and ergonomic controls.
• Flexible Counterweight Configuration – Up to 19.5 tonnes with self-assembly capability.
• Comprehensive Safety Systems – Load moment indicator, virtual wall, cameras, fault diagnostics, and interlock protection.
